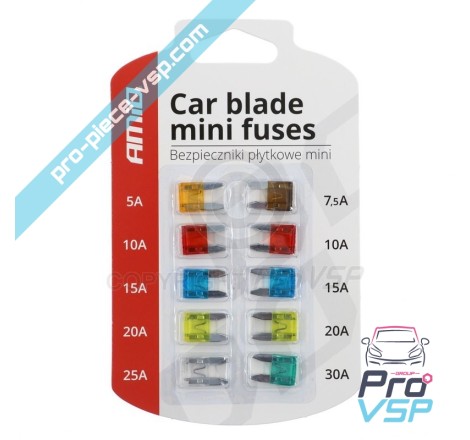

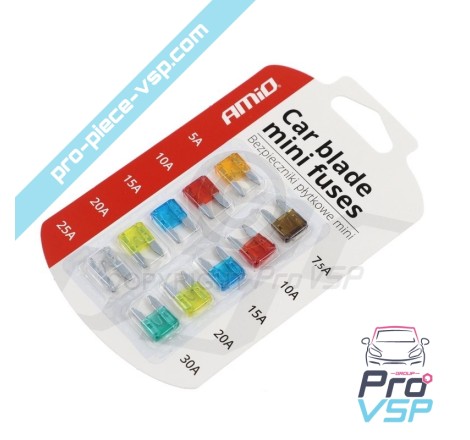

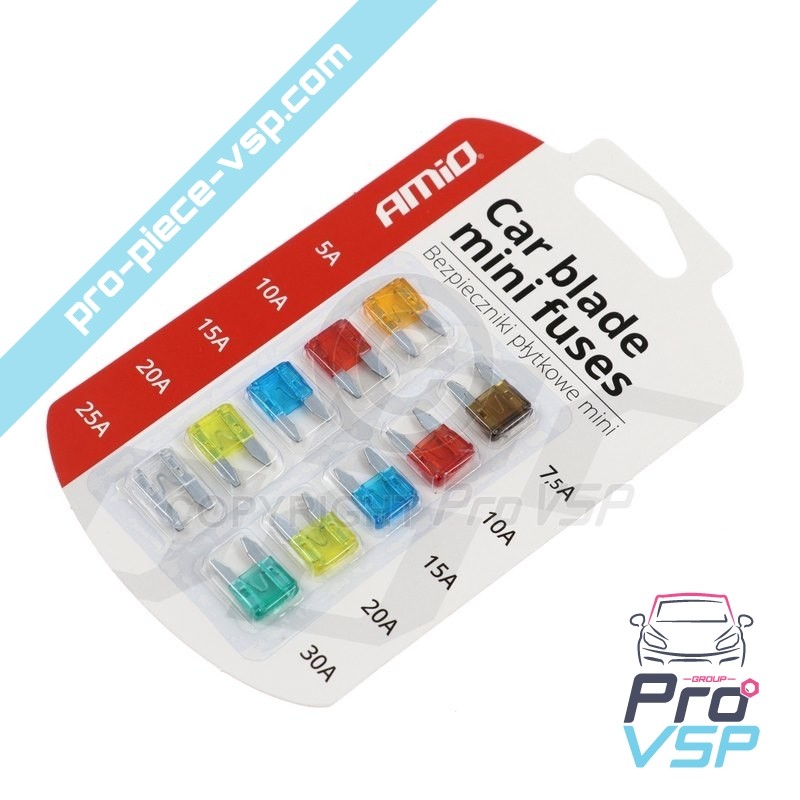

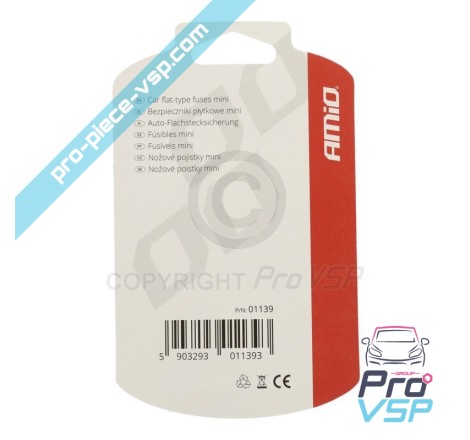

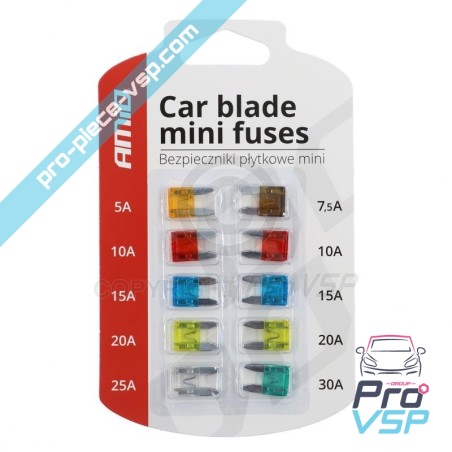

Blister 10 mini fuses

Blister containing ten mini fuses for car without a license:

- 1 5 amp fuse

- 1 fuse of 7.5 amps

- 2 10 ampere fuses

- 2 15 amp fuses

- 2 20 amperes fuses

- 1 fuse 25 amperes

- 1 30 amp fuse

What are the car fuses without license?

Nowadays, cars have more and more electronics embedded to facilitate or secure your driving. The fuses Thus play a vital role in protecting your car from any electric failure that can lead to surges, or worse, fire.

In fact, the higher the current current, the higher the heat. This is where the fuses come!

Each fuse is designed to melt at a given temperature. Thus, when the voltage of the electrical circuit increases too much, the fuse will melt to play a role of coupe-Circuit and therefore stop the circulation of the current.

In the majority of cases, overvoltage problems are caused by one of the equipment of the car that creates a short-circuit and therefore increase the current intensity in the circuit.

How to test a car fuse without a license?

It is not very complicated to test a car fuse. The best solution is to use a multimeter. So we're going to detail you step by step how to test the fuses of your car using a multimeter.

Materials needed:

• A multimeter
• Protective gloves

Step 1: Take out the fuse

Start by removing the fuse from its location and then examine the status of your fuse at first. Generally the car fuses are composed of an insulating and transparent envelope that makes it possible to check the state of the fuse and more particularly the conductive tongue.

Thus, if a fuse is HS, the conductive tongue has melted to cut the circuit. It is therefore easy to see the naked eye if a fuse is still functional or not.

Step 2: Take a multimeter and set-the

However, if your car fuses do not allow the possibility of seeing the condition of the conductive tab, you must test them using a multimeter. To test a fuse, your multimeter will have to be set to the ohmmeter position.

To correctly adjust your multimeter, you will need to start connecting the black wire and the red wire to read the encryption that appears on the multimeter screen. The fuse voltage should be equivalent to the value that is displayed.

Step 3: Connect the fuse and test-the

Now plug the two wires from the multimeter on each side of the fuse. The direction of branching of the wires does not matter. Look now the value that appears: if it is equivalent to the one you had measured previously, then your fuse is working properly.

If this is not the case where you see the OverLimit mention, your fuse is to change!

What are the different types of car fuses without a license?

There are different types of car fuse. It is therefore essential to identify them well for their change. Indeed, you must absolutely replace a HS fuse with a new fuse of the same type. If in doubt, you can refer to your service book for the type of fuse.

But remember that the fuses are defined by the size of their caliber : 3.5A / 5a / 7,5a / 10a / 15A ... Good to know: Each caliber has a unique color Fixed by DIN 72581. So you can trust the fuse color to be certain to change the faulty fuse by a fuse of the same caliber.

If you change a HS fuse by a higher gauge fuse, the latter will melt at a higher temperature than that provided by the manufacturer, which can lead a short-circuit, or worse, a fire.

The 3 most common types of fuses are:

• The mini-fuses : With a size of 2 to 30A and a size of only 10x15mm.
• Standard fuses : with a gauge of 3.5 to 30a and a size of 20x20mm.
• The max-fuses : With a caliber of 30 to 90A and a size of 35x25mm. This type of fuse is only used in the engine compartment.
