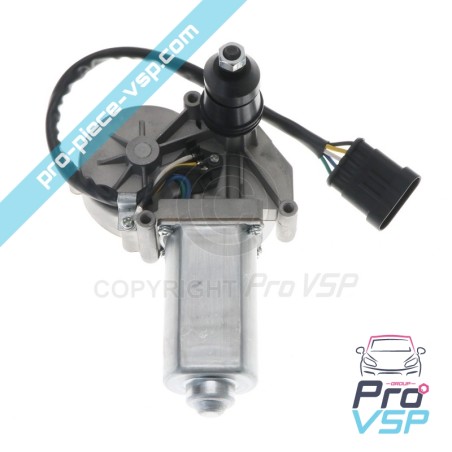

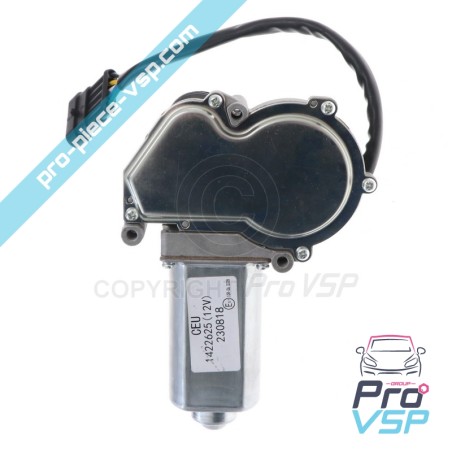

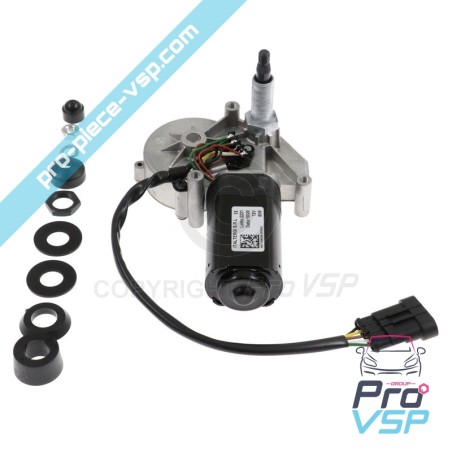

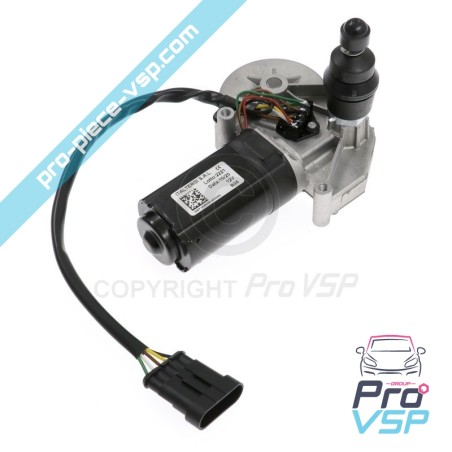

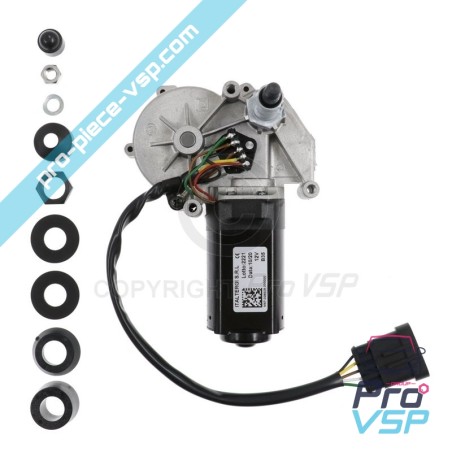

Front wiper motor
Microcar MGO 3 , MGO 4/5, MGO 6 / Dué 2 P85, Dué 3/5 P88, Dué 6
By buying this product you can collect up to 7 points. Your cart will total 7 points that can be converted into a voucher of €1.40.
or 4 x 17.67 € with PayPal
By buying this product you can collect up to 7 points. Your cart will total 7 points that can be converted into a voucher of €1.40.
Wiper motor front Origin for car without a license:
- Microcar Mgo 3 and 4/5 ( VJR82 - VJR84 )
- Microcar Mgo 6
- Dué 2 P85 ( VH882 )
- Dué 3/5 P88 ( VJR82 - VJR84 )
- Dué 6 ( VJR84 )
Reference Origin: 1406261 / 1422625
How does a wiper engine work-ICE?
The wiper system-Ice has two key elements: the electric motor and the transmission mechanism. The first is composed of an armature, magnetic inductors and of brush attached to the induced collector.
The second has a screw with a piece of induces and it is it that transmits the rotation to a large pinion which multiplies the speed of ...
Read moreWiper motor front Origin for car without a license:
- Microcar Mgo 3 and 4/5 ( VJR82 - VJR84 )
- Microcar Mgo 6
- Dué 2 P85 ( VH882 )
- Dué 3/5 P88 ( VJR82 - VJR84 )
- Dué 6 ( VJR84 )
Reference Origin: 1406261 / 1422625
How does a wiper engine work-ICE?
The wiper system-Ice has two key elements: the electric motor and the transmission mechanism. The first is composed of an armature, magnetic inductors and of brush attached to the induced collector.
The second has a screw with a piece of induces and it is it that transmits the rotation to a large pinion which multiplies the speed of rotation. The current is transported through two brooms, A positive and a mass. So it's the strength of the magnetic field which allows to act on the winding of the induced and to dose its importance.
Thus, the wiper engine-Ice can operate on multiple schemes:
- Low-speed : It is mainly used during low rains. The force of the magnetic field is maximum, the speed of rotation of the motor is therefore idle;
- Medium : It is set up when waterfalls are more important. The strength of the magnetic field is medium force to accelerate the speed of rotation of the motor;
- High-speed : It is useful when water trumpes or even hail affect your windshield. The power supply goes through the third broom that is shifted from the axis. The strength of the magnetic field is very low to allow the engine to have a very important speed of rotation.
You can control this speed using the Orders present on your tableemail edge or on the steering wheel according to the different vehicle models.
On the other hand, on the most recent cars, the paper towels-Ice creams are activated automatically with a sensor that detects rain, whether weak or high, and manages the scanning speed.
How to test a wiper engine-ICE?
There are several ways to test a wiper engine-ice. The most common is to connect directly a multimeter in the ohmmeter position on the wires of the wiper engine-Ice present under the hood of your vehicle.
In particular, they must be connected to the mass broom to test the correct power supply. It is also possible to test the operation of the motor of the wiper-Rear ice. To have access, you have to disassemble the cache on the chest door.
Several signs can alert you from the wiper motor failure-Ice when using wiper brushes-Ice such as:
- The wiper brushes-ice moves more slowly than usual;
- The wiper brushes-ice do not move at all;
- The wiper brushes-ice only function at a single speed even in the event of a change of control;
- The wiper brushes-Ice cream stop in the wrong position;
If the wiper engine-Ice does not work anymore is that it's time to replace it. An appointment-you quickly at a car professional so that it can change the one-it.
Show lessData sheet
- Types of parts
- Ice wiper motor
- Brand
- Dué, Microcar
- Model
- 04 - Microcar Dué 6 (P105), 22 - Microcar Mgo 6, 03 - Dué 3 (P88), 02 - Dué 2 (P85), 19 - Microcar Mgo 4, 18 - Microcar Mgo 3, 17 - Microcar Dué 3 (P88), 21 - Microcar Dué 6 (P105)
- Serial number
- VJR82LMDA, BY VH882, BY VJR84, VJR82LLDA, VJR82LRBA
